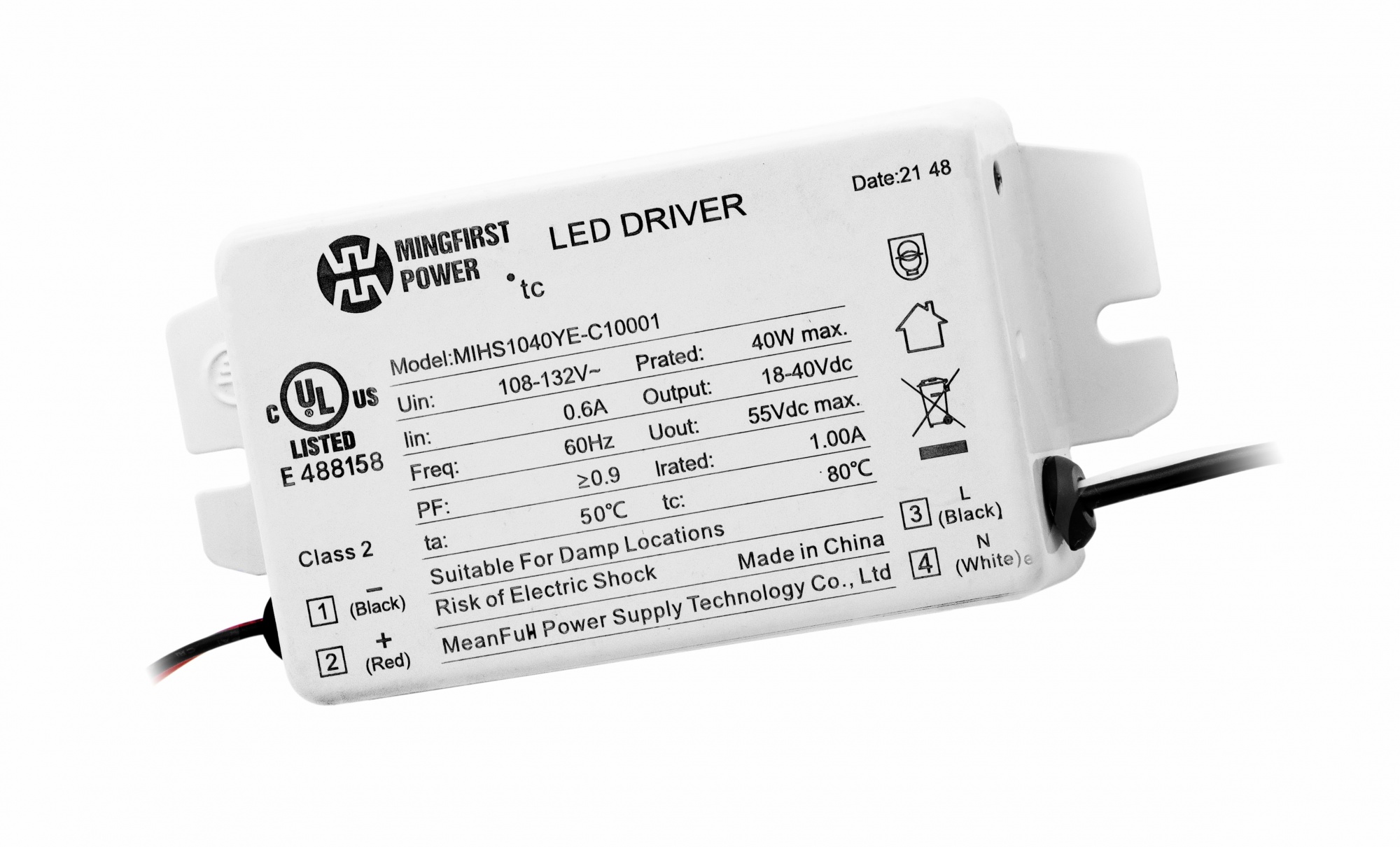

Compact Isolated Triac Dimming Driver UL Standard 0587
Type:class II
Support Protection: short circuit / over load / under voltage
Dimming range:1%-100%
Ingress of Protection: IP20
Start-up Time: <0.5s
Operating Temperature:-20℃~50℃
Warranty: 3/5 years
Certificates: UL/EAC
Application: Down Lights / Ceiling Lights
Code | Item.No | Rated Power | Input Voltage | Output Voltage | Output Current | PF | Effiency | Dimensions(L*W*H) | Ripple(%) | Downloads |
0587 | MIHS1007YC-C02001 | 7W | 108-132V | 18-36V | 200mA | ≥0.95 | 85% | φ45*H125mm | ＜5% |
|
0586 | MIHS1015YC-C03801 | 15W | 108-132V | 18-40V | 380mA | ≥0.95 | 85% | φ55*H25mm | ＜5% |
|
0584 | MIHS1025YC-C07001 | 25W | 108-132V | 18-36V | 700mA | ≥0.95 | 85% | φ65*H25.5mm | ＜5% |
|
0584 | MIHS1032YC-C08001 | 32W | 108-132V | 18-40V | 800mA | ≥0.95 | 85% | φ65*H25.5mm | ＜5% |
|
0583 | MIHS1040YE-C10001 | 40W | 108-132V | 18-40V | 1000mA | ≥0.95 | 87% | 89.3*55*2lmm | ＜5% |
|
